SE-V231S42

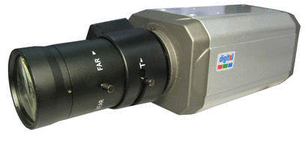

Box Camera 420TVL 1/4 Sony CCD 0.1 Lux, C/CS Mount, NO LENS, 12VDC
Box Camera 420TVL 1/4 Sony CCD 0.1 Lux, C/CS Mount, NO LENS, 12VDC



Product Code: SE-V231S42

Price: $  Login for Price
If you don't have an account apply now!

Stock:  Available



Product Details:

Security Box Camera 420TVL 1/4" Sony CCD 0.1 Lux, C/CS Mount, NO LENS, DC Drive 12VDC

Key Specifications/Special Features:

  • Image sensor: 1/4-inch Sony CCD
  • Pixels:
    • PAL: 512 x 582 pixels
    • NTSC: 512 x 492 pixels
  • Horizontal resolution: 420TVL
  • TV system: NTSC/PAL
  • Synchronization system: internal
  • Mini illumination: 0.1 lux
  • White balance: mode
  • Range: 3,200 to 10,000K
  • S/N ratio: >48dB (AGC off)
  • Iris control mode: DC/video
  • Electronic shutter: PAL 1/50 to 1/10,000sec
  • Lens mount: C/CS mount
  • AES: on/off switch
  • Video out: composite output 1.0V p-p at 75 ohms
  • Gamma correction: 0.45
  • Operating temperature: -10 to +50 Deg. C
  • Weight: 200g
  • Power consumption: ≤100mAh
